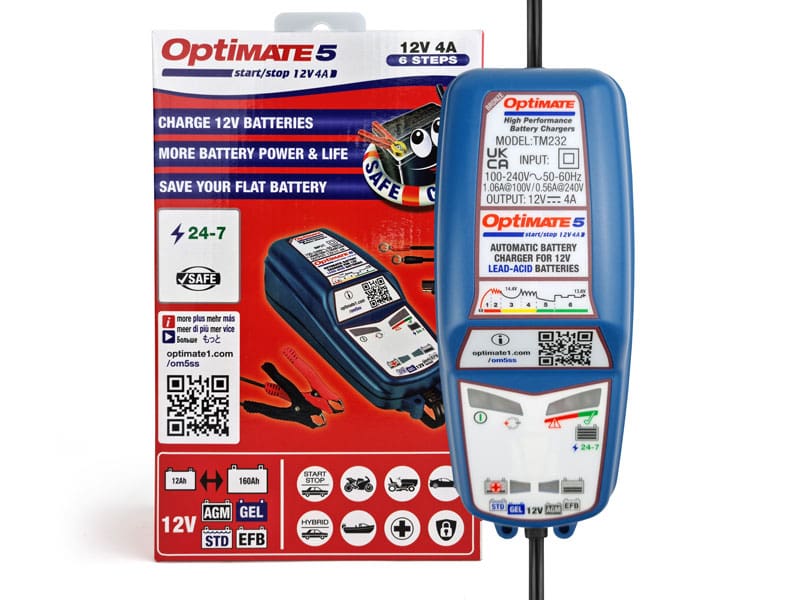

OptiMate 5 Stop Start 12V Battery Charger/Optimiser
OptiMate 5 is your all-in-one battery charging, recovery and maintenance tool. Whether your battery has been neglected over winter or simply needs regular care, OptiMate 5 intelligently revives and maintains it, prolonging battery life by up to 400%.
How It Works
- Safety Check: Must detect a battery with ≥2V before activating output.
- Desulphation: Applies up to 20V to recover sulphated or deeply discharged batteries.
- Bulk Charge: Delivers 4A constant current to restore battery close to full charge.
- Charge Verification: Assesses battery’s ability to absorb charge before continuing.
- Charge Retention Test: Performs hourly checks to assess battery health.
- Maintenance: Provides low current float charge for safe, long-term connection.
✅ Key Features
- 4 Amp smart charging for batteries from 15Ah to 192Ah
- Recovers flat and sulphated batteries
- Safe for long-term use – auto adjusts to battery needs
- Optimises battery performance & extends lifespan
- Clear LED indicators for charge status
- 3-year warranty – TUV/GS certified
What’s in the Box

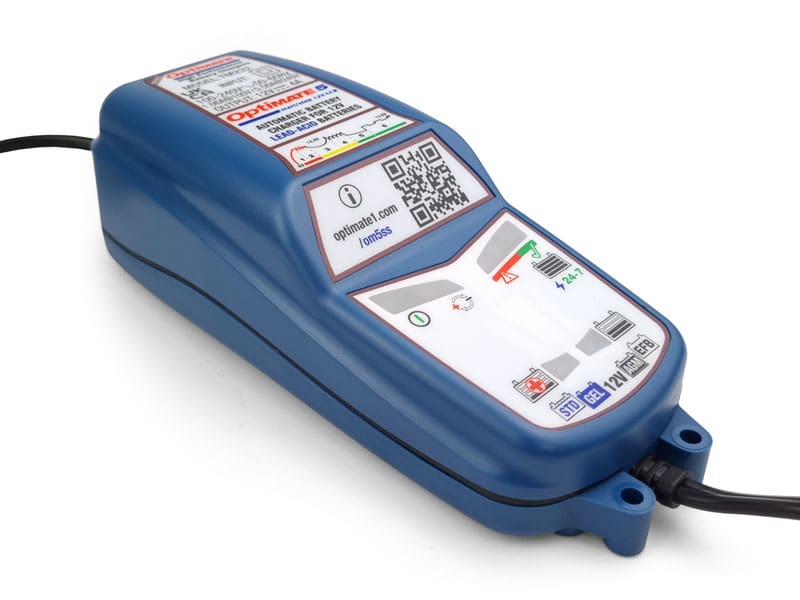

- OptiMate 5 Charger

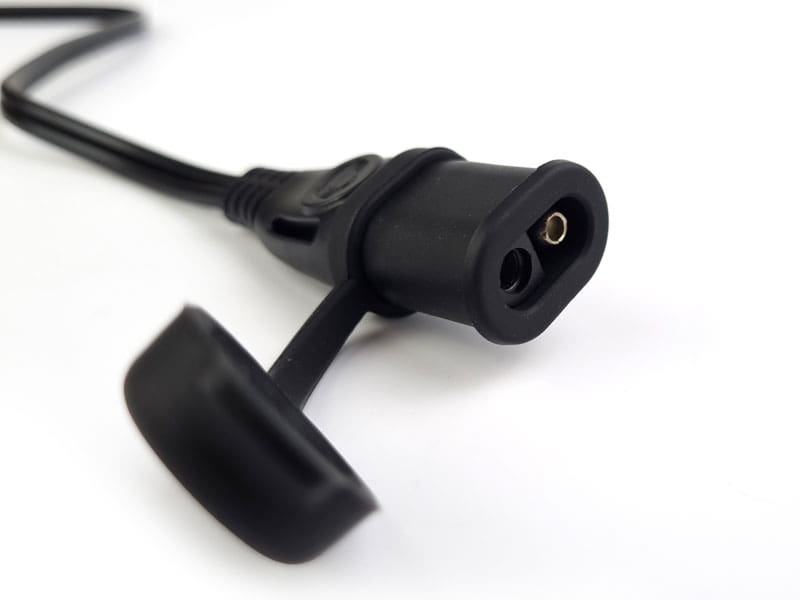

- O11 Weatherproof Eyelet Lead

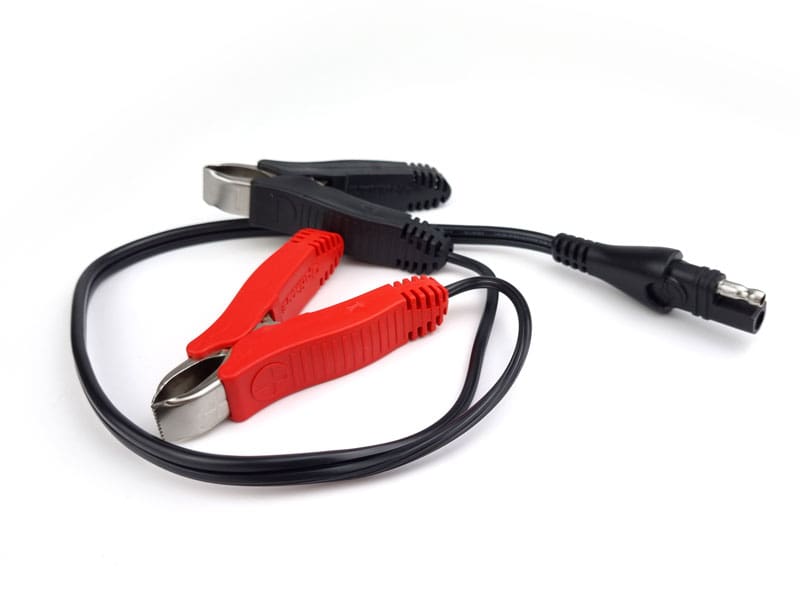

- O4 Clamp Lead for bench charging
Technical Specifications
- Battery Types: AGM, MF, STD, GEL, spiral cell
- Charge Current: 4A (bulk mode)
- Input Voltage: 230V
- Input Current: Max 0.35A
- Reverse Drain: <1mA
- Charge Time Limit: Unlimited – safe for months
- Weight: 1kg
- Size: 200 x 75 x 61mm
- IP54 splash-resistant housing
- Operation Temp: -40°C to +50°C
⚙️ Recommended Use
Ideal for seasonally used vehicles, such as classic cars, motorbikes, or leisure vehicles. Keeps your battery topped up and healthy when not in regular use.
️ Battery Storage Tips
- Store batteries in a cool, dry place – not freezing!
- Keep batteries fully charged to extend lifespan
- OptiMate avoids overcharging with intelligent monitoring
⚠️ Important Compatibility Info
Compatible with all 12V lead-acid batteries, including:
- Standard flooded (filler cap)
- AGM/MF (absorbed glass mat)
- GEL batteries
- Valve regulated batteries
Optional Accessories (Sold Separately)

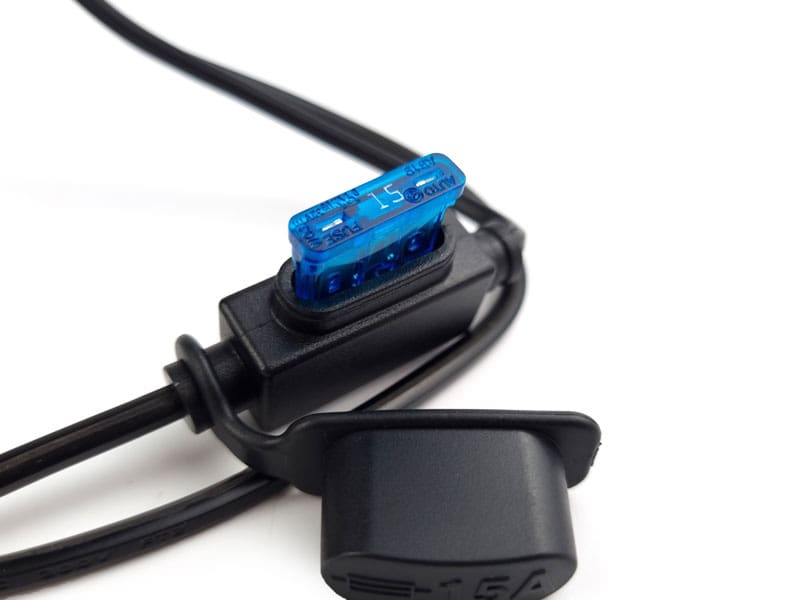

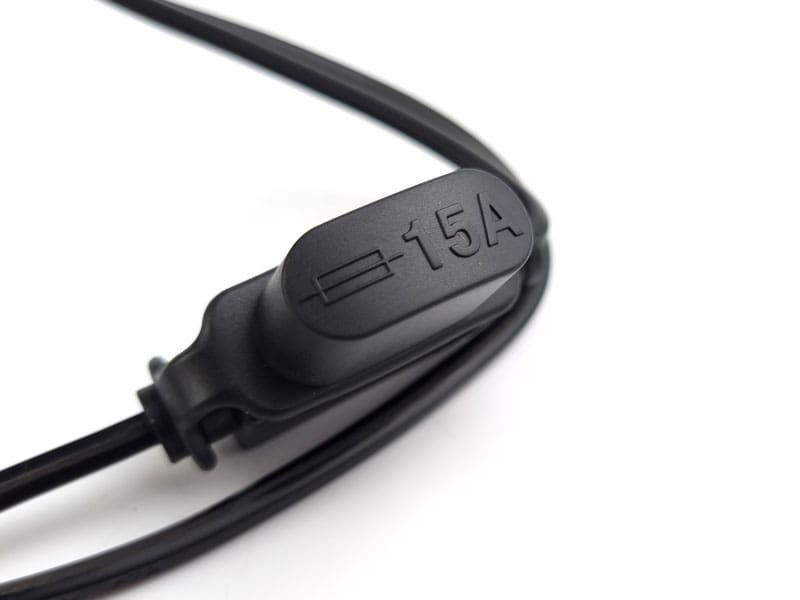

- O1 Fused eyelet leads (permanent fit)
- O2 Cigarette lighter plug adapter
- Extension leads (1.8m / 4.6m)
- Weatherproof sockets for 12V accessories
Tip: For batteries with complex drain patterns (alarms, ECUs), OptiMate’s smart current & voltage sensing ensures accurate full-charge detection before entering maintenance mode.
